SVM Implementation

Maximum margin classifier with kernel methods

Support Vector Machines find the optimal hyperplane that maximizes the margin between classes.

Maximum Margin Hyperplane

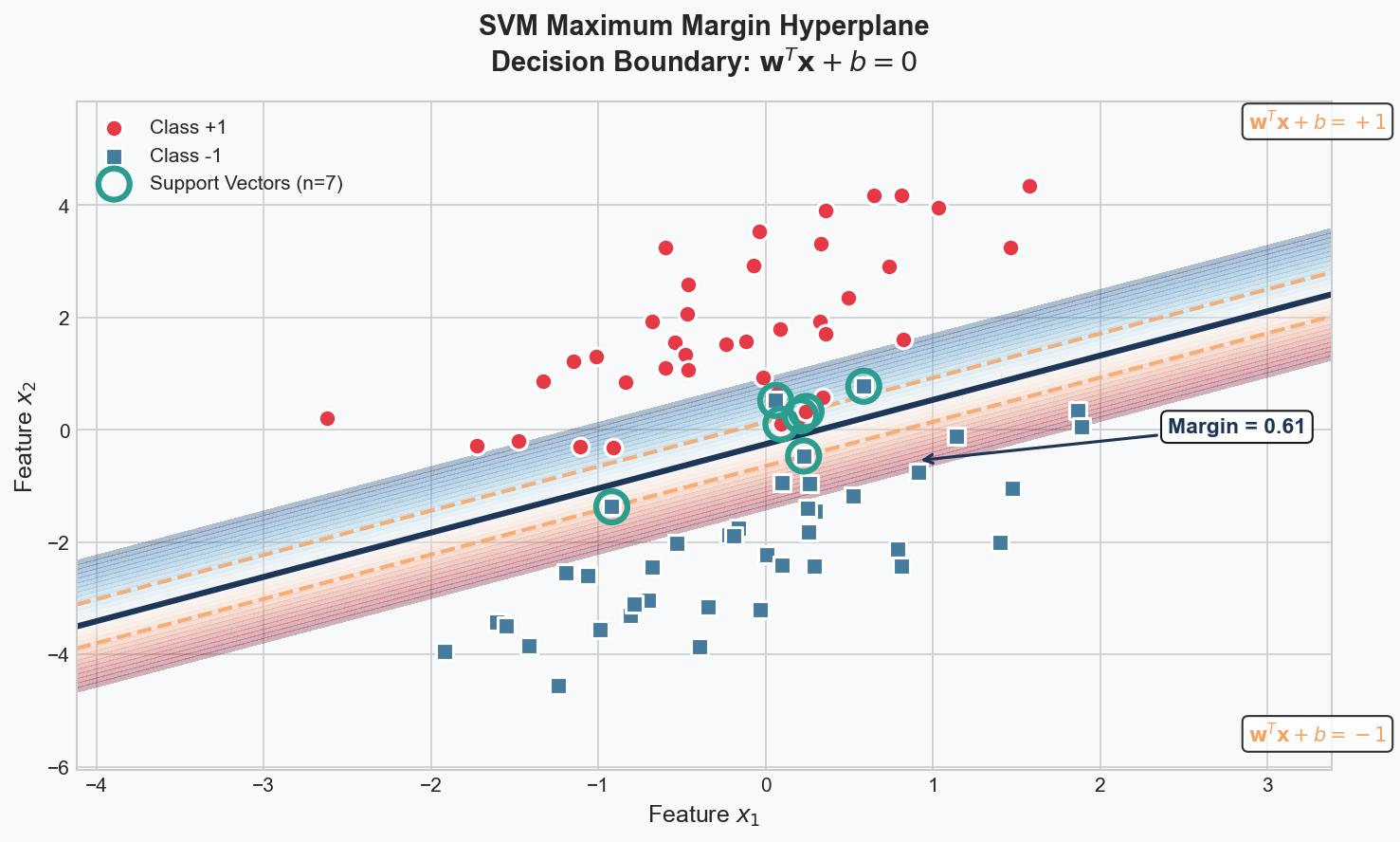

SVM Maximum Margin Hyperplane

Key equations: Hyperplane $w^{T} x + b = 0$ , Decision $f (x) = sign (w^{T} x + b)$ , Margin $γ = \frac{2}{∥ w ∥}$

Hard Margin SVM

For linearly separable data:

min_{w, b} \frac{1}{2} ∥ w ∥^{2} s.t. y_{i} (w^{T} x_{i} + b) \geq 1

Lagrangian Formulation

L (w, b, α) = \frac{1}{2} ∥ w ∥^{2} - \sum_{i = 1}^{n} α_{i} [y_{i} (w^{T} x_{i} + b) - 1]

KKT Conditions:

$\frac{\partial L}{\partial w} = 0 \Rightarrow w = \sum_{i = 1}^{n} α_{i} y_{i} x_{i}$
$\frac{\partial L}{\partial b} = 0 \Rightarrow \sum_{i = 1}^{n} α_{i} y_{i} = 0$
$α_{i} \geq 0$
$α_{i} [y_{i} (w^{T} x_{i} + b) - 1] = 0$ (complementary slackness)

Dual Problem

Substituting the KKT conditions:

max_{α} \sum_{i = 1}^{n} α_{i} - \frac{1}{2} \sum_{i = 1}^{n} \sum_{j = 1}^{n} α_{i} α_{j} y_{i} y_{j} x_{i}^{T} x_{j}

Subject to:

$α_{i} \geq 0$ for all $i$
$\sum_{i = 1}^{n} α_{i} y_{i} = 0$

python

import numpy as np
from typing import Tuple, List, Callable, Optional
import matplotlib.pyplot as plt
from scipy.optimize import minimize

class HardMarginSVM:
    """
    Hard Margin SVM using quadratic programming.
    Only works for linearly separable data.
    """

    def __init__(self, tol: float = 1e-5):
        self.tol = tol
        self.w = None
        self.b = None
        self.support_vectors = None
        self.support_labels = None
        self.alphas = None

    def fit(self, X: np.ndarray, y: np.ndarray) -> 'HardMarginSVM':
        """
        Fit hard margin SVM using dual formulation.

        Args:
            X: Training features (n_samples, n_features)
            y: Training labels in {-1, +1}
        """
        n_samples, n_features = X.shape

        # Compute Gram matrix
        K = np.dot(X, X.T)

        # Quadratic programming: minimize 0.5 * alpha^T @ P @ alpha - q^T @ alpha
        # P[i,j] = y_i * y_j * K[i,j]
        P = np.outer(y, y) * K
        q = -np.ones(n_samples)

        # Constraints: sum(alpha_i * y_i) = 0, alpha_i >= 0
        def objective(alpha):
            return 0.5 * np.dot(alpha, np.dot(P, alpha)) + np.dot(q, alpha)

        def gradient(alpha):
            return np.dot(P, alpha) + q

        # Equality constraint: sum(alpha_i * y_i) = 0
        constraints = {'type': 'eq', 'fun': lambda a: np.dot(a, y)}

        # Bounds: alpha_i >= 0
        bounds = [(0, None) for _ in range(n_samples)]

        # Initial guess
        alpha0 = np.zeros(n_samples)

        # Solve
        result = minimize(objective, alpha0, jac=gradient,
                         constraints=constraints, bounds=bounds,
                         method='SLSQP')

        alphas = result.x

        # Find support vectors (alpha > tol)
        sv_mask = alphas > self.tol
        self.alphas = alphas[sv_mask]
        self.support_vectors = X[sv_mask]
        self.support_labels = y[sv_mask]

        # Compute w = sum(alpha_i * y_i * x_i)
        self.w = np.sum(self.alphas[:, np.newaxis] *
                        self.support_labels[:, np.newaxis] *
                        self.support_vectors, axis=0)

        # Compute b using any support vector
        # y_s(w^T x_s + b) = 1 => b = y_s - w^T x_s
        self.b = np.mean(self.support_labels -
                        np.dot(self.support_vectors, self.w))

        return self

    def predict(self, X: np.ndarray) -> np.ndarray:
        """Predict class labels."""
        return np.sign(np.dot(X, self.w) + self.b)

    def decision_function(self, X: np.ndarray) -> np.ndarray:
        """Compute decision function values."""
        return np.dot(X, self.w) + self.b

Soft Margin SVM

Introduce slack variables $ξ_{i} \geq 0$ for non-separable data:

min_{w, b, ξ} \frac{1}{2} ∥ w ∥^{2} + C \sum_{i = 1}^{n} ξ_{i} s.t. y_{i} (w^{T} x_{i} + b) \geq 1 - ξ_{i}

The C Parameter

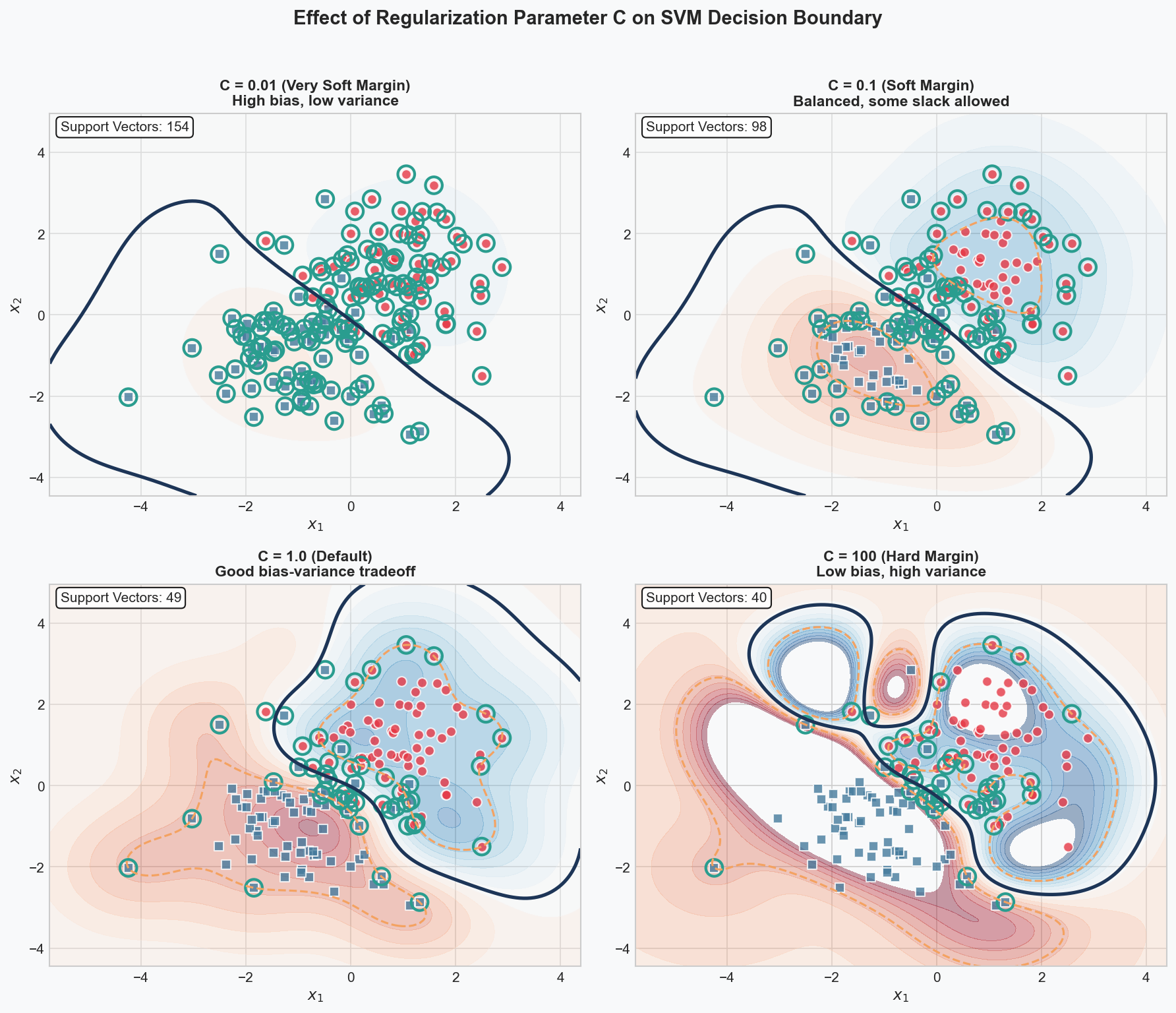

Effect of C Parameter

Dual Formulation

max_{α} \sum_{i = 1}^{n} α_{i} - \frac{1}{2} \sum_{i, j} α_{i} α_{j} y_{i} y_{j} x_{i}^{T} x_{j} s.t. 0 \leq α_{i} \leq C, \sum_{i} α_{i} y_{i} = 0

Hinge Loss Formulation

Unconstrained form using hinge loss $L_{hinge} = max (0, 1 - y \cdot f (x))$ :

min_{w, b} \frac{1}{2} ∥ w ∥^{2} + C \sum_{i = 1}^{n} max (0, 1 - y_{i} (w^{T} x_{i} + b))

Subgradient: $\frac{\partial L}{\partial f} = 0$ if $y \cdot f (x) > 1$ , else $- y$

python

class SoftMarginSVM:
    """
    Soft Margin SVM using hinge loss and gradient descent.
    """

    def __init__(self, C: float = 1.0, learning_rate: float = 0.001,
                 n_iterations: int = 1000, tol: float = 1e-5):
        self.C = C
        self.learning_rate = learning_rate
        self.n_iterations = n_iterations
        self.tol = tol
        self.w = None
        self.b = None
        self.loss_history = []

    def _hinge_loss(self, X: np.ndarray, y: np.ndarray) -> float:
        """Compute total hinge loss."""
        margins = y * (np.dot(X, self.w) + self.b)
        hinge = np.maximum(0, 1 - margins)
        return 0.5 * np.dot(self.w, self.w) + self.C * np.sum(hinge)

    def fit(self, X: np.ndarray, y: np.ndarray) -> 'SoftMarginSVM':
        """
        Fit soft margin SVM using subgradient descent.

        Args:
            X: Training features (n_samples, n_features)
            y: Training labels in {-1, +1}
        """
        n_samples, n_features = X.shape

        # Initialize weights
        self.w = np.zeros(n_features)
        self.b = 0

        for iteration in range(self.n_iterations):
            # Compute margins
            margins = y * (np.dot(X, self.w) + self.b)

            # Find misclassified or margin violations
            violations = margins < 1

            # Compute gradients
            # dL/dw = w - C * sum(y_i * x_i) for violations
            dw = self.w - self.C * np.sum(
                y[violations, np.newaxis] * X[violations], axis=0
            )

            # dL/db = -C * sum(y_i) for violations
            db = -self.C * np.sum(y[violations])

            # Update with learning rate decay
            lr = self.learning_rate / (1 + iteration * 0.001)
            self.w -= lr * dw
            self.b -= lr * db

            # Record loss
            loss = self._hinge_loss(X, y)
            self.loss_history.append(loss)

            # Check convergence
            if len(self.loss_history) > 1:
                if abs(self.loss_history[-1] - self.loss_history[-2]) < self.tol:
                    break

        return self

    def predict(self, X: np.ndarray) -> np.ndarray:
        """Predict class labels."""
        return np.sign(np.dot(X, self.w) + self.b)

    def decision_function(self, X: np.ndarray) -> np.ndarray:
        """Compute decision function values."""
        return np.dot(X, self.w) + self.b

    def score(self, X: np.ndarray, y: np.ndarray) -> float:
        """Compute accuracy."""
        predictions = self.predict(X)
        return np.mean(predictions == y)

The Kernel Trick

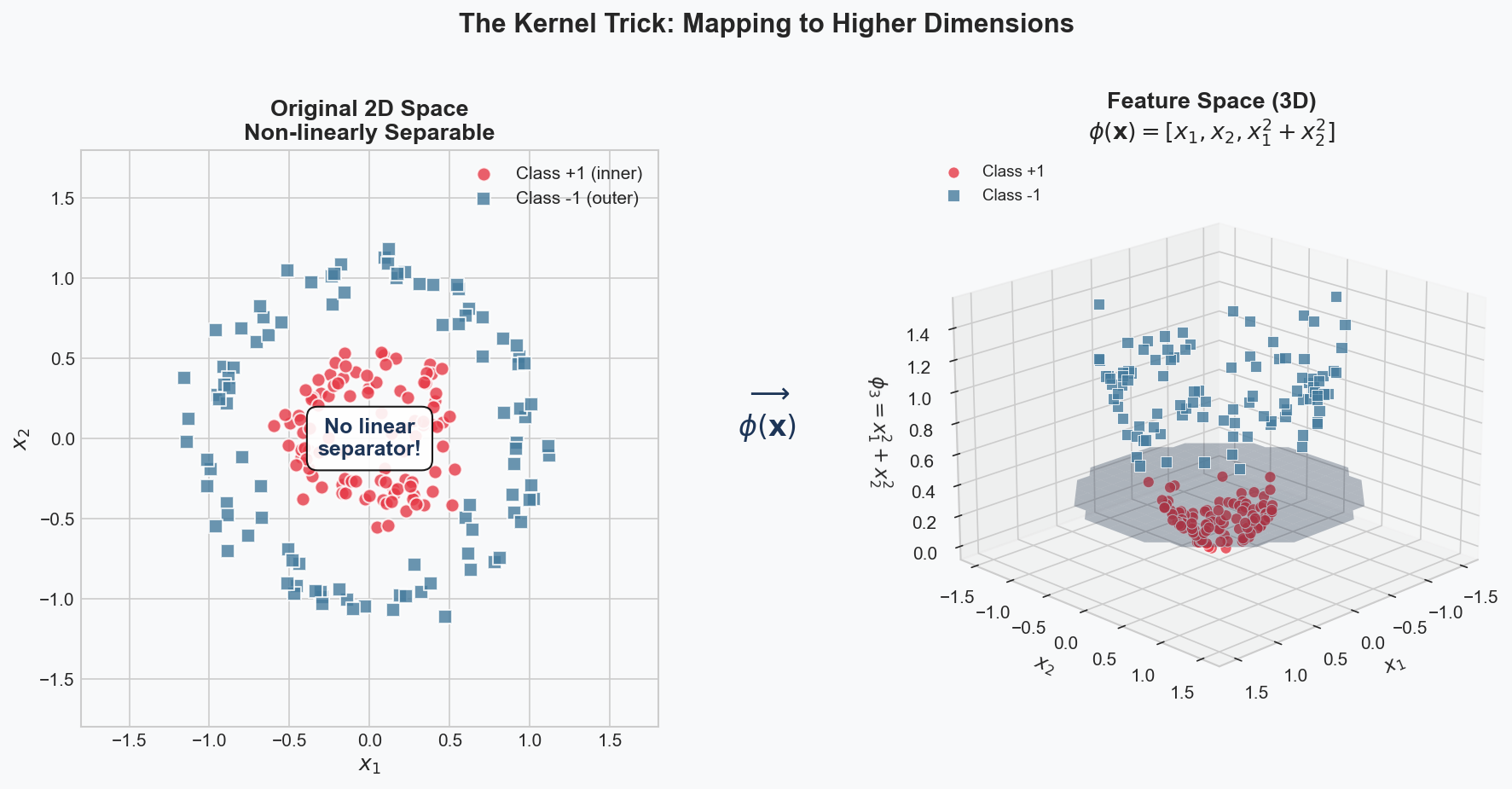

Kernel Trick Visualization

Maps data to higher dimensions implicitly: $K (x_{i}, x_{j}) = ϕ (x_{i})^{T} ϕ (x_{j})$

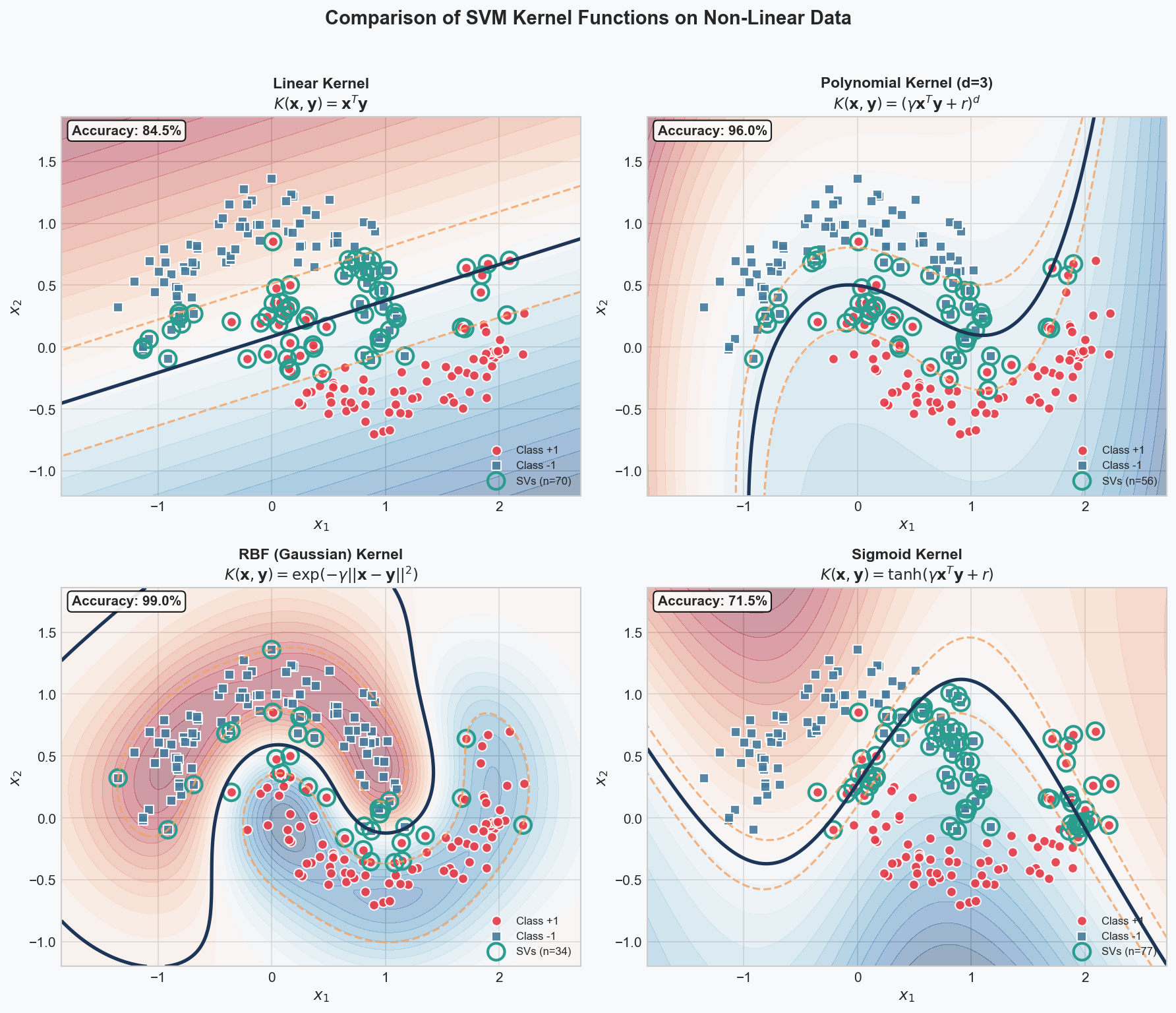

Kernel Comparison

Kernel	Formula
Linear	$K (x, y) = x^{T} y$
Polynomial	$K (x, y) = (γ x^{T} y + r)^{d}$
RBF	$K (x, y) = \exp (- γ \| x - y \|^{2})$
Sigmoid	$K (x, y) = \tanh (γ x^{T} y + r)$

python

class KernelFunctions:
    """Collection of kernel functions for SVM."""

    @staticmethod
    def linear(x1: np.ndarray, x2: np.ndarray) -> np.ndarray:
        """Linear kernel: K(x, y) = x^T y"""
        return np.dot(x1, x2.T)

    @staticmethod
    def polynomial(x1: np.ndarray, x2: np.ndarray,
                   degree: int = 3, gamma: float = 1.0,
                   coef0: float = 1.0) -> np.ndarray:
        """Polynomial kernel: K(x, y) = (gamma * x^T y + coef0)^degree"""
        return (gamma * np.dot(x1, x2.T) + coef0) ** degree

    @staticmethod
    def rbf(x1: np.ndarray, x2: np.ndarray,
            gamma: float = 1.0) -> np.ndarray:
        """
        RBF (Gaussian) kernel: K(x, y) = exp(-gamma * ||x - y||^2)

        Handles both vector and matrix inputs.
        """
        if x1.ndim == 1:
            x1 = x1.reshape(1, -1)
        if x2.ndim == 1:
            x2 = x2.reshape(1, -1)

        # Compute squared Euclidean distances
        # ||x - y||^2 = ||x||^2 + ||y||^2 - 2 * x^T y
        x1_sq = np.sum(x1 ** 2, axis=1).reshape(-1, 1)
        x2_sq = np.sum(x2 ** 2, axis=1).reshape(1, -1)
        distances = x1_sq + x2_sq - 2 * np.dot(x1, x2.T)

        return np.exp(-gamma * distances)

    @staticmethod
    def sigmoid(x1: np.ndarray, x2: np.ndarray,
                gamma: float = 0.01, coef0: float = 0.0) -> np.ndarray:
        """Sigmoid kernel: K(x, y) = tanh(gamma * x^T y + coef0)"""
        return np.tanh(gamma * np.dot(x1, x2.T) + coef0)


class KernelSVM:
    """
    Kernelized SVM using dual formulation.
    """

    def __init__(self, C: float = 1.0, kernel: str = 'rbf',
                 gamma: float = 1.0, degree: int = 3, coef0: float = 1.0,
                 tol: float = 1e-5, max_iter: int = 1000):
        self.C = C
        self.kernel = kernel
        self.gamma = gamma
        self.degree = degree
        self.coef0 = coef0
        self.tol = tol
        self.max_iter = max_iter

        # Model parameters
        self.alphas = None
        self.support_vectors = None
        self.support_labels = None
        self.b = None

    def _compute_kernel(self, X1: np.ndarray, X2: np.ndarray) -> np.ndarray:
        """Compute kernel matrix between X1 and X2."""
        if self.kernel == 'linear':
            return KernelFunctions.linear(X1, X2)
        elif self.kernel == 'polynomial':
            return KernelFunctions.polynomial(X1, X2, self.degree,
                                              self.gamma, self.coef0)
        elif self.kernel == 'rbf':
            return KernelFunctions.rbf(X1, X2, self.gamma)
        elif self.kernel == 'sigmoid':
            return KernelFunctions.sigmoid(X1, X2, self.gamma, self.coef0)
        else:
            raise ValueError(f"Unknown kernel: {self.kernel}")

    def fit(self, X: np.ndarray, y: np.ndarray) -> 'KernelSVM':
        """
        Fit kernelized SVM using quadratic programming.

        Args:
            X: Training features (n_samples, n_features)
            y: Training labels in {-1, +1}
        """
        n_samples = X.shape[0]

        # Compute kernel matrix
        K = self._compute_kernel(X, X)

        # Setup QP problem
        P = np.outer(y, y) * K
        q = -np.ones(n_samples)

        def objective(alpha):
            return 0.5 * np.dot(alpha, np.dot(P, alpha)) + np.dot(q, alpha)

        def gradient(alpha):
            return np.dot(P, alpha) + q

        constraints = {'type': 'eq', 'fun': lambda a: np.dot(a, y)}
        bounds = [(0, self.C) for _ in range(n_samples)]
        alpha0 = np.zeros(n_samples)

        result = minimize(objective, alpha0, jac=gradient,
                         constraints=constraints, bounds=bounds,
                         method='SLSQP', options={'maxiter': self.max_iter})

        alphas = result.x

        # Find support vectors
        sv_mask = alphas > self.tol
        self.alphas = alphas[sv_mask]
        self.support_vectors = X[sv_mask]
        self.support_labels = y[sv_mask]

        # Compute bias using support vectors on margin
        # These have 0 < alpha < C
        margin_sv_mask = (alphas > self.tol) & (alphas < self.C - self.tol)

        if np.sum(margin_sv_mask) > 0:
            margin_sv = X[margin_sv_mask]
            margin_labels = y[margin_sv_mask]

            # b = y_s - sum(alpha_i * y_i * K(x_i, x_s))
            K_sv = self._compute_kernel(self.support_vectors, margin_sv)
            predictions = np.dot(self.alphas * self.support_labels, K_sv)
            self.b = np.mean(margin_labels - predictions)
        else:
            # Fallback: use all support vectors
            K_sv = self._compute_kernel(self.support_vectors,
                                        self.support_vectors)
            predictions = np.dot(self.alphas * self.support_labels, K_sv)
            self.b = np.mean(self.support_labels - predictions)

        return self

    def decision_function(self, X: np.ndarray) -> np.ndarray:
        """Compute decision function values."""
        K = self._compute_kernel(self.support_vectors, X)
        return np.dot(self.alphas * self.support_labels, K) + self.b

    def predict(self, X: np.ndarray) -> np.ndarray:
        """Predict class labels."""
        return np.sign(self.decision_function(X))

    def score(self, X: np.ndarray, y: np.ndarray) -> float:
        """Compute accuracy."""
        return np.mean(self.predict(X) == y)

Sequential Minimal Optimization (SMO)

Overview

SMO solves the SVM optimization by breaking it into smallest possible subproblems: optimizing two $α$ values at a time.

Why Two at a Time?

The constraint $\sum_{i} α_{i} y_{i} = 0$ means we cannot change just one $α$ .

With two variables $α_{1}, α_{2}$ :

α_{1} y_{1} + α_{2} y_{2} = constant

The Two-Variable Subproblem

Given old values $α_{1}^{old}, α_{2}^{old}$ , find new values.

Bounds on $α_{2}$ :

If $y_{1} \neq y_{2}$ : $L = max (0, α_{2}^{old} - α_{1}^{old})$ , $H = min (C, C + α_{2}^{old} - α_{1}^{old})$
If $y_{1} = y_{2}$ : $L = max (0, α_{1}^{old} + α_{2}^{old} - C)$ , $H = min (C, α_{1}^{old} + α_{2}^{old})$

Update formula:

α_{2}^{new} = α_{2}^{old} + \frac{y_{2} (E_{1} - E_{2})}{η}

where:

$E_{i} = f (x_{i}) - y_{i}$ (prediction error)
$η = 2 K (x_{1}, x_{2}) - K (x_{1}, x_{1}) - K (x_{2}, x_{2})$

Clip to bounds: $α_{2}^{new} = clip (α_{2}^{new}, L, H)$

Update $α_{1}$ :

α_{1}^{new} = α_{1}^{old} + y_{1} y_{2} (α_{2}^{old} - α_{2}^{new})

python

class SMO_SVM:
    """
    Support Vector Machine using Sequential Minimal Optimization.

    SMO breaks the large QP problem into small 2-variable subproblems.
    """

    def __init__(self, C: float = 1.0, kernel: str = 'rbf',
                 gamma: float = 1.0, degree: int = 3, coef0: float = 1.0,
                 tol: float = 1e-3, max_passes: int = 100):
        self.C = C
        self.kernel = kernel
        self.gamma = gamma
        self.degree = degree
        self.coef0 = coef0
        self.tol = tol
        self.max_passes = max_passes

        # Model state
        self.alphas = None
        self.b = 0
        self.X = None
        self.y = None
        self.K = None  # Cached kernel matrix
        self.errors = None  # Cached errors

    def _compute_kernel_matrix(self, X: np.ndarray) -> np.ndarray:
        """Compute full kernel matrix."""
        if self.kernel == 'linear':
            return KernelFunctions.linear(X, X)
        elif self.kernel == 'rbf':
            return KernelFunctions.rbf(X, X, self.gamma)
        elif self.kernel == 'polynomial':
            return KernelFunctions.polynomial(X, X, self.degree,
                                              self.gamma, self.coef0)

    def _decision_function_single(self, i: int) -> float:
        """Compute f(x_i) = sum(alpha_j * y_j * K(x_j, x_i)) + b"""
        return np.dot(self.alphas * self.y, self.K[:, i]) + self.b

    def _compute_error(self, i: int) -> float:
        """Compute E_i = f(x_i) - y_i"""
        return self._decision_function_single(i) - self.y[i]

    def _take_step(self, i1: int, i2: int) -> bool:
        """
        Optimize alpha[i1] and alpha[i2].
        Returns True if optimization made progress.
        """
        if i1 == i2:
            return False

        alpha1_old = self.alphas[i1]
        alpha2_old = self.alphas[i2]
        y1, y2 = self.y[i1], self.y[i2]
        E1 = self.errors[i1]
        E2 = self.errors[i2]

        s = y1 * y2

        # Compute bounds L and H
        if y1 != y2:
            L = max(0, alpha2_old - alpha1_old)
            H = min(self.C, self.C + alpha2_old - alpha1_old)
        else:
            L = max(0, alpha1_old + alpha2_old - self.C)
            H = min(self.C, alpha1_old + alpha2_old)

        if L >= H:
            return False

        # Compute eta
        k11 = self.K[i1, i1]
        k12 = self.K[i1, i2]
        k22 = self.K[i2, i2]
        eta = 2 * k12 - k11 - k22

        if eta < 0:
            # Standard case: compute new alpha2
            alpha2_new = alpha2_old - y2 * (E1 - E2) / eta

            # Clip to bounds
            if alpha2_new > H:
                alpha2_new = H
            elif alpha2_new < L:
                alpha2_new = L
        else:
            # Rare case: evaluate objective at bounds
            # (handling edge cases in numerical stability)
            return False

        # Check if change is significant
        if abs(alpha2_new - alpha2_old) < self.tol * (alpha2_new + alpha2_old + self.tol):
            return False

        # Compute new alpha1
        alpha1_new = alpha1_old + s * (alpha2_old - alpha2_new)

        # Update bias
        b1 = E1 + y1 * (alpha1_new - alpha1_old) * k11 + \
             y2 * (alpha2_new - alpha2_old) * k12 + self.b
        b2 = E2 + y1 * (alpha1_new - alpha1_old) * k12 + \
             y2 * (alpha2_new - alpha2_old) * k22 + self.b

        if 0 < alpha1_new < self.C:
            self.b = b1
        elif 0 < alpha2_new < self.C:
            self.b = b2
        else:
            self.b = (b1 + b2) / 2

        # Update alphas
        self.alphas[i1] = alpha1_new
        self.alphas[i2] = alpha2_new

        # Update error cache
        self.errors[i1] = self._compute_error(i1)
        self.errors[i2] = self._compute_error(i2)

        return True

    def _examine_example(self, i2: int) -> int:
        """
        Try to find a good i1 to pair with i2.
        Returns 1 if optimization succeeded, 0 otherwise.
        """
        y2 = self.y[i2]
        alpha2 = self.alphas[i2]
        E2 = self.errors[i2]
        r2 = E2 * y2

        # Check if alpha2 violates KKT conditions
        if (r2 < -self.tol and alpha2 < self.C) or \
           (r2 > self.tol and alpha2 > 0):

            # Get indices of non-bound alphas
            non_bound = np.where((self.alphas > 0) & (self.alphas < self.C))[0]

            if len(non_bound) > 1:
                # Second choice heuristic: maximize |E1 - E2|
                if E2 > 0:
                    i1 = np.argmin(self.errors)
                else:
                    i1 = np.argmax(self.errors)

                if self._take_step(i1, i2):
                    return 1

            # Loop over non-bound alphas
            for i1 in np.random.permutation(non_bound):
                if self._take_step(i1, i2):
                    return 1

            # Loop over all alphas
            for i1 in np.random.permutation(len(self.alphas)):
                if self._take_step(i1, i2):
                    return 1

        return 0

    def fit(self, X: np.ndarray, y: np.ndarray) -> 'SMO_SVM':
        """
        Fit SVM using SMO algorithm.

        Args:
            X: Training features (n_samples, n_features)
            y: Training labels in {-1, +1}
        """
        n_samples = X.shape[0]

        self.X = X
        self.y = y
        self.alphas = np.zeros(n_samples)
        self.b = 0

        # Cache kernel matrix (for small datasets)
        self.K = self._compute_kernel_matrix(X)

        # Initialize error cache
        self.errors = -y.astype(float)  # E_i = f(x_i) - y_i = -y_i initially

        num_changed = 0
        examine_all = True
        passes = 0

        while (num_changed > 0 or examine_all) and passes < self.max_passes:
            num_changed = 0

            if examine_all:
                # Loop over all training examples
                for i in range(n_samples):
                    num_changed += self._examine_example(i)
            else:
                # Loop over non-bound examples
                non_bound = np.where((self.alphas > 0) &
                                    (self.alphas < self.C))[0]
                for i in non_bound:
                    num_changed += self._examine_example(i)

            passes += 1

            if examine_all:
                examine_all = False
            elif num_changed == 0:
                examine_all = True

        # Store support vectors
        sv_mask = self.alphas > 1e-7
        self.support_vectors = X[sv_mask]
        self.support_labels = y[sv_mask]
        self.support_alphas = self.alphas[sv_mask]

        return self

    def decision_function(self, X: np.ndarray) -> np.ndarray:
        """Compute decision function for new samples."""
        if self.kernel == 'rbf':
            K = KernelFunctions.rbf(self.support_vectors, X, self.gamma)
        elif self.kernel == 'linear':
            K = KernelFunctions.linear(self.support_vectors, X)
        elif self.kernel == 'polynomial':
            K = KernelFunctions.polynomial(self.support_vectors, X,
                                           self.degree, self.gamma, self.coef0)

        return np.dot(self.support_alphas * self.support_labels, K) + self.b

    def predict(self, X: np.ndarray) -> np.ndarray:
        """Predict class labels."""
        return np.sign(self.decision_function(X))

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229

Multi-Class Strategies

SVMs are inherently binary classifiers. For multi-class problems:

One-vs-Rest (OvR)

Train K binary classifiers, one for each class vs. all others.

Prediction: Choose class with highest decision value.

One-vs-One (OvO)

Train $(\binom{K}{2}) = \frac{K (K - 1)}{2}$ binary classifiers for each pair.

Prediction: Voting - each classifier votes for one class.

python

class MultiClassSVM:
    """
    Multi-class SVM using One-vs-Rest or One-vs-One strategies.
    """

    def __init__(self, strategy: str = 'ovr', C: float = 1.0,
                 kernel: str = 'rbf', gamma: float = 1.0):
        self.strategy = strategy
        self.C = C
        self.kernel = kernel
        self.gamma = gamma
        self.classifiers = {}
        self.classes = None

    def fit(self, X: np.ndarray, y: np.ndarray) -> 'MultiClassSVM':
        """
        Fit multi-class SVM.

        Args:
            X: Training features
            y: Training labels (any integer labels)
        """
        self.classes = np.unique(y)
        n_classes = len(self.classes)

        if self.strategy == 'ovr':
            # One-vs-Rest: K classifiers
            for cls in self.classes:
                # Create binary labels: +1 for this class, -1 for others
                y_binary = np.where(y == cls, 1, -1)

                clf = KernelSVM(C=self.C, kernel=self.kernel, gamma=self.gamma)
                clf.fit(X, y_binary)
                self.classifiers[cls] = clf

        elif self.strategy == 'ovo':
            # One-vs-One: K(K-1)/2 classifiers
            for i, cls1 in enumerate(self.classes):
                for cls2 in self.classes[i+1:]:
                    # Get samples from both classes
                    mask = (y == cls1) | (y == cls2)
                    X_pair = X[mask]
                    y_pair = np.where(y[mask] == cls1, 1, -1)

                    clf = KernelSVM(C=self.C, kernel=self.kernel, gamma=self.gamma)
                    clf.fit(X_pair, y_pair)
                    self.classifiers[(cls1, cls2)] = clf

        return self

    def predict(self, X: np.ndarray) -> np.ndarray:
        """Predict class labels."""
        n_samples = X.shape[0]

        if self.strategy == 'ovr':
            # Get decision values from each classifier
            decision_values = np.zeros((n_samples, len(self.classes)))

            for i, cls in enumerate(self.classes):
                decision_values[:, i] = self.classifiers[cls].decision_function(X)

            # Choose class with highest decision value
            return self.classes[np.argmax(decision_values, axis=1)]

        elif self.strategy == 'ovo':
            # Voting
            votes = np.zeros((n_samples, len(self.classes)))

            for (cls1, cls2), clf in self.classifiers.items():
                predictions = clf.predict(X)

                cls1_idx = np.where(self.classes == cls1)[0][0]
                cls2_idx = np.where(self.classes == cls2)[0][0]

                votes[predictions == 1, cls1_idx] += 1
                votes[predictions == -1, cls2_idx] += 1

            return self.classes[np.argmax(votes, axis=1)]

    def score(self, X: np.ndarray, y: np.ndarray) -> float:
        """Compute accuracy."""
        return np.mean(self.predict(X) == y)

Complete Implementation Example

python

def create_classification_data(n_samples: int = 200,
                               noise: float = 0.1,
                               pattern: str = 'circles') -> Tuple[np.ndarray, np.ndarray]:
    """Create synthetic classification data."""
    np.random.seed(42)

    if pattern == 'linear':
        # Linearly separable data
        X = np.random.randn(n_samples, 2)
        y = np.sign(X[:, 0] + X[:, 1] + noise * np.random.randn(n_samples))

    elif pattern == 'circles':
        # Concentric circles (not linearly separable)
        t = np.random.uniform(0, 2 * np.pi, n_samples)
        inner = n_samples // 2

        r_inner = 1 + noise * np.random.randn(inner)
        r_outer = 3 + noise * np.random.randn(n_samples - inner)

        X = np.vstack([
            np.column_stack([r_inner * np.cos(t[:inner]),
                            r_inner * np.sin(t[:inner])]),
            np.column_stack([r_outer * np.cos(t[inner:]),
                            r_outer * np.sin(t[inner:])])
        ])
        y = np.array([-1] * inner + [1] * (n_samples - inner))

    elif pattern == 'moons':
        # Two moons
        n_each = n_samples // 2
        t = np.linspace(0, np.pi, n_each)

        moon1 = np.column_stack([np.cos(t), np.sin(t)])
        moon2 = np.column_stack([1 - np.cos(t), 0.5 - np.sin(t)])

        X = np.vstack([moon1, moon2]) + noise * np.random.randn(n_samples, 2)
        y = np.array([-1] * n_each + [1] * n_each)

    # Shuffle
    perm = np.random.permutation(n_samples)
    return X[perm], y[perm]


def plot_decision_boundary(clf, X: np.ndarray, y: np.ndarray,
                          title: str = "SVM Decision Boundary"):
    """Visualize the decision boundary and support vectors."""
    plt.figure(figsize=(10, 8))

    # Create mesh grid
    x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
    y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1
    xx, yy = np.meshgrid(np.linspace(x_min, x_max, 200),
                         np.linspace(y_min, y_max, 200))

    # Predict on mesh
    Z = clf.decision_function(np.c_[xx.ravel(), yy.ravel()])
    Z = Z.reshape(xx.shape)

    # Plot decision boundary and margins
    plt.contourf(xx, yy, Z, levels=np.linspace(Z.min(), Z.max(), 20),
                 cmap='RdBu', alpha=0.6)
    plt.contour(xx, yy, Z, levels=[-1, 0, 1], colors=['blue', 'black', 'red'],
                linestyles=['--', '-', '--'], linewidths=[1.5, 2, 1.5])

    # Plot data points
    plt.scatter(X[y == -1, 0], X[y == -1, 1], c='blue', marker='o',
                edgecolors='k', s=50, label='Class -1')
    plt.scatter(X[y == 1, 0], X[y == 1, 1], c='red', marker='s',
                edgecolors='k', s=50, label='Class +1')

    # Highlight support vectors
    if hasattr(clf, 'support_vectors') and clf.support_vectors is not None:
        plt.scatter(clf.support_vectors[:, 0], clf.support_vectors[:, 1],
                   s=200, facecolors='none', edgecolors='green', linewidths=2,
                   label=f'Support Vectors ({len(clf.support_vectors)})')

    plt.xlabel('Feature 1')
    plt.ylabel('Feature 2')
    plt.title(title)
    plt.legend()
    plt.colorbar(label='Decision Function')
    plt.tight_layout()
    plt.show()


def compare_kernels(X: np.ndarray, y: np.ndarray):
    """Compare different kernel functions."""
    kernels = ['linear', 'polynomial', 'rbf']

    fig, axes = plt.subplots(1, 3, figsize=(15, 5))

    for ax, kernel in zip(axes, kernels):
        clf = KernelSVM(C=1.0, kernel=kernel, gamma=1.0, degree=3)
        clf.fit(X, y)

        # Create mesh
        x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
        y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1
        xx, yy = np.meshgrid(np.linspace(x_min, x_max, 100),
                             np.linspace(y_min, y_max, 100))

        Z = clf.decision_function(np.c_[xx.ravel(), yy.ravel()])
        Z = Z.reshape(xx.shape)

        ax.contourf(xx, yy, Z, levels=20, cmap='RdBu', alpha=0.6)
        ax.contour(xx, yy, Z, levels=[0], colors='black', linewidths=2)
        ax.scatter(X[y == -1, 0], X[y == -1, 1], c='blue', edgecolors='k')
        ax.scatter(X[y == 1, 0], X[y == 1, 1], c='red', edgecolors='k')
        ax.set_title(f'{kernel.upper()} Kernel\nAccuracy: {clf.score(X, y):.2%}')

    plt.tight_layout()
    plt.show()


# Main demonstration
if __name__ == "__main__":
    # Generate data
    X, y = create_classification_data(n_samples=200, noise=0.3, pattern='circles')

    # Split data
    n_train = int(0.8 * len(X))
    X_train, X_test = X[:n_train], X[n_train:]
    y_train, y_test = y[:n_train], y[n_train:]

    print("=" * 60)
    print("SVM IMPLEMENTATION DEMONSTRATION")
    print("=" * 60)

    # Test Soft Margin SVM with gradient descent
    print("\n1. Soft Margin SVM (Gradient Descent):")
    svm_soft = SoftMarginSVM(C=1.0, learning_rate=0.01, n_iterations=1000)
    svm_soft.fit(X_train, y_train)
    print(f"   Training Accuracy: {svm_soft.score(X_train, y_train):.2%}")
    print(f"   Test Accuracy: {svm_soft.score(X_test, y_test):.2%}")

    # Test Kernel SVM
    print("\n2. Kernel SVM (RBF):")
    svm_kernel = KernelSVM(C=1.0, kernel='rbf', gamma=0.5)
    svm_kernel.fit(X_train, y_train)
    print(f"   Training Accuracy: {svm_kernel.score(X_train, y_train):.2%}")
    print(f"   Test Accuracy: {svm_kernel.score(X_test, y_test):.2%}")
    print(f"   Number of Support Vectors: {len(svm_kernel.support_vectors)}")

    # Test SMO
    print("\n3. SMO Algorithm (RBF):")
    svm_smo = SMO_SVM(C=1.0, kernel='rbf', gamma=0.5)
    svm_smo.fit(X_train, y_train)
    print(f"   Training Accuracy: {np.mean(svm_smo.predict(X_train) == y_train):.2%}")
    print(f"   Test Accuracy: {np.mean(svm_smo.predict(X_test) == y_test):.2%}")

    # Multi-class example
    print("\n4. Multi-Class SVM:")
    # Create 3-class problem
    X_multi = np.vstack([
        np.random.randn(50, 2) + [0, 0],
        np.random.randn(50, 2) + [3, 0],
        np.random.randn(50, 2) + [1.5, 2.5]
    ])
    y_multi = np.array([0] * 50 + [1] * 50 + [2] * 50)

    mc_svm = MultiClassSVM(strategy='ovr', C=1.0, kernel='rbf', gamma=0.5)
    mc_svm.fit(X_multi, y_multi)
    print(f"   OvR Accuracy: {mc_svm.score(X_multi, y_multi):.2%}")

    mc_svm_ovo = MultiClassSVM(strategy='ovo', C=1.0, kernel='rbf', gamma=0.5)
    mc_svm_ovo.fit(X_multi, y_multi)
    print(f"   OvO Accuracy: {mc_svm_ovo.score(X_multi, y_multi):.2%}")

Hyperparameter Tuning

Key parameters: C (margin vs. penalty), gamma (RBF bandwidth), degree (polynomial complexity)

Grid Search

python

def grid_search_svm(X: np.ndarray, y: np.ndarray,
                    C_values: List[float], gamma_values: List[float],
                    n_folds: int = 5) -> Tuple[float, float, float]:
    """Find best hyperparameters using cross-validation."""
    n_samples = len(X)
    fold_size = n_samples // n_folds

    best_score = 0
    best_C, best_gamma = C_values[0], gamma_values[0]

    for C in C_values:
        for gamma in gamma_values:
            scores = []

            for fold in range(n_folds):
                # Create validation fold
                val_start = fold * fold_size
                val_end = val_start + fold_size

                X_val = X[val_start:val_end]
                y_val = y[val_start:val_end]
                X_train = np.vstack([X[:val_start], X[val_end:]])
                y_train = np.concatenate([y[:val_start], y[val_end:]])

                # Train and evaluate
                clf = KernelSVM(C=C, kernel='rbf', gamma=gamma)
                clf.fit(X_train, y_train)
                scores.append(clf.score(X_val, y_val))

            mean_score = np.mean(scores)
            if mean_score > best_score:
                best_score = mean_score
                best_C = C
                best_gamma = gamma

    return best_C, best_gamma, best_score

Summary

Aspect	Key Points
Hard Margin	Maximum margin for linearly separable data
Soft Margin	Slack variables $ξ$ with regularization $C$
Kernel Trick	Implicit high-dimensional mapping via $K (x, y)$
SMO	Efficient QP solver using 2-variable subproblems
Multi-class	OvR (K classifiers) or OvO (K(K-1)/2 classifiers)

Complexity: Training $O (n^{2})$ to $O (n^{3})$ , Prediction $O (n_{s v} \cdot d)$

Best for: High-dimensional data, clear margins, sparse solutions, small-medium datasets

SVM Implementation ​

Maximum Margin Hyperplane ​

Hard Margin SVM ​

Lagrangian Formulation ​

Dual Problem ​

Soft Margin SVM ​

The C Parameter ​

Dual Formulation ​

Hinge Loss Formulation ​

The Kernel Trick ​

Kernel Comparison ​

Sequential Minimal Optimization (SMO) ​

Overview ​

Why Two at a Time? ​

The Two-Variable Subproblem ​

Multi-Class Strategies ​

One-vs-Rest (OvR) ​

One-vs-One (OvO) ​

Complete Implementation Example ​

Hyperparameter Tuning ​

Grid Search ​

Summary ​

SVM Implementation

Maximum Margin Hyperplane

Hard Margin SVM

Lagrangian Formulation

Dual Problem

Soft Margin SVM

The C Parameter

Dual Formulation

Hinge Loss Formulation

The Kernel Trick

Kernel Comparison

Sequential Minimal Optimization (SMO)

Overview

Why Two at a Time?

The Two-Variable Subproblem

Multi-Class Strategies

One-vs-Rest (OvR)

One-vs-One (OvO)

Complete Implementation Example

Hyperparameter Tuning

Grid Search

Summary
