Smallest Range Covering Elements from K Lists
Find the smallest range using k-way merge with min-heap
Problem Statement
You have k lists of sorted integers in non-decreasing order. Find the smallest range that includes at least one number from each of the k lists.
We define the range [a, b] is smaller than range [c, d] if:
b - a < d - c, orb - a == d - canda < c
LeetCode: Problem 632 - Smallest Range Covering Elements from K Lists
Examples
Example 1
Input: nums = [[4,10,15,24,26],[0,9,12,20],[5,18,22,30]]
Output: [20,24]Explanation:
- List 1: [4, 10, 15, 24, 26], 24 is in range [20, 24]
- List 2: [0, 9, 12, 20], 20 is in range [20, 24]
- List 3: [5, 18, 22, 30], 22 is in range [20, 24]
Example 2
Input: nums = [[1,2,3],[1,2,3],[1,2,3]]
Output: [1,1]Constraints
nums.length == k1 <= k <= 35001 <= nums[i].length <= 50-10^5 <= nums[i][j] <= 10^5nums[i]is sorted in non-decreasing order

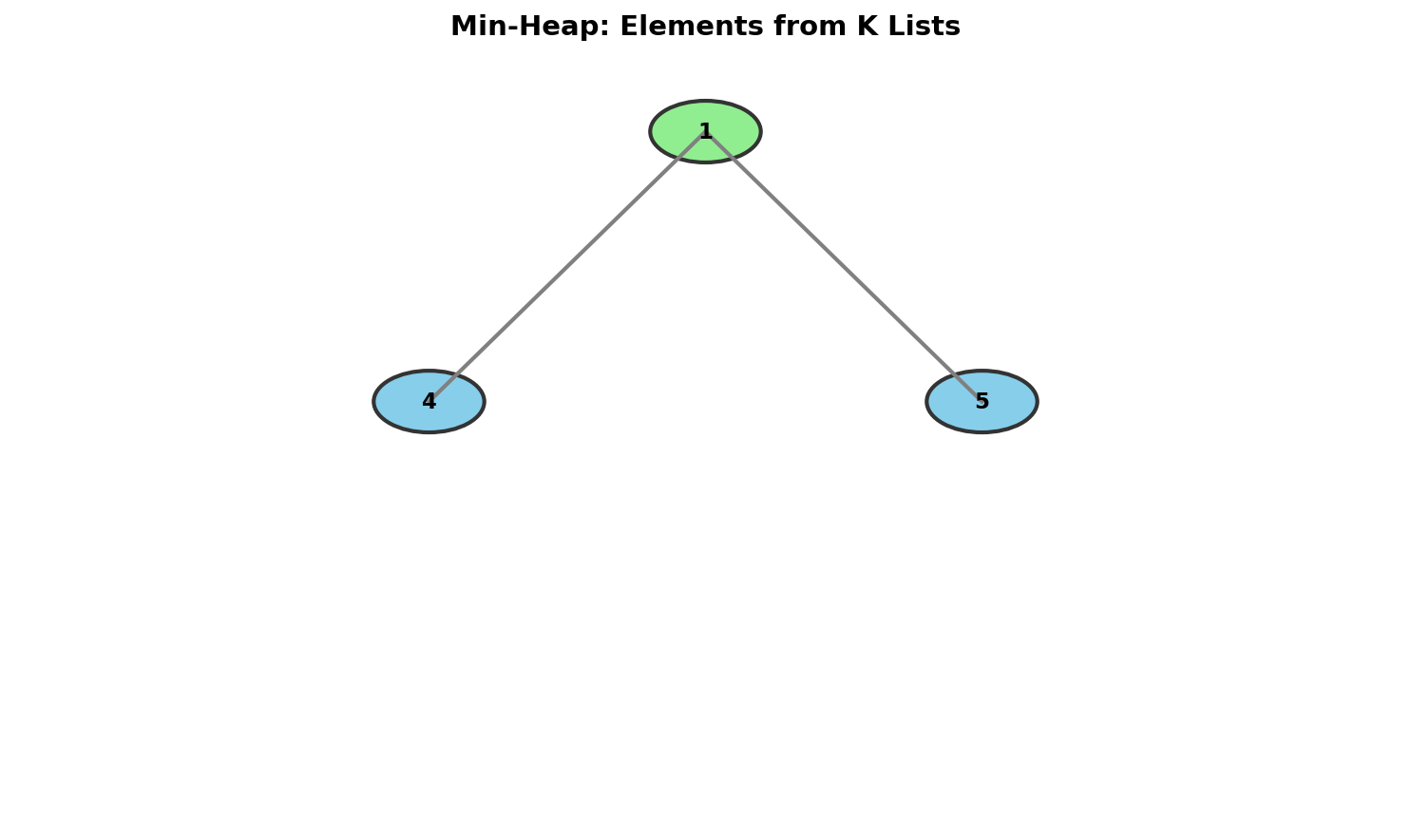

Visualization
Key Insight
This problem extends the K-Way Merge pattern:
- Maintain a min-heap with one element from each list
- Track the current maximum among elements in the heap
- The range is
[heap_min, current_max] - To shrink the range, advance the pointer of the list that contributed the minimum
Why This Works
At any point, the heap contains exactly one element from each list:
- The heap root is the minimum across all k lists
- We track the maximum separately
- Range = [min, max] covers at least one element from each list
To potentially find a smaller range:
- We can't decrease the max (it's already the max of current pointers)
- We can try to increase the min (by advancing the min-contributing list)
Solution
python
import heapq
def smallestRange(nums: list[list[int]]) -> list[int]:
"""
Find smallest range covering one element from each list.
Algorithm:
1. Initialize heap with first element from each list
2. Track current max
3. Current range = [heap root, current max]
4. Pop min, push next from that list, update max
5. Stop when any list is exhausted
Time: O(n log k) where n = total elements, k = number of lists
Space: O(k) for the heap
"""
# Min-heap: (value, list_index, element_index)
min_heap = []
current_max = float('-inf')
# Initialize with first element from each list
for i, lst in enumerate(nums):
heapq.heappush(min_heap, (lst[0], i, 0))
current_max = max(current_max, lst[0])
# Track best range
best_range = [min_heap[0][0], current_max]
while True:
# Current range
min_val, list_idx, elem_idx = heapq.heappop(min_heap)
# Check if this range is better
if current_max - min_val < best_range[1] - best_range[0]:
best_range = [min_val, current_max]
# Try to advance the list that contributed min
if elem_idx + 1 == len(nums[list_idx]):
# This list is exhausted, we must stop
break
# Push next element from this list
next_val = nums[list_idx][elem_idx + 1]
heapq.heappush(min_heap, (next_val, list_idx, elem_idx + 1))
# Update max if needed
current_max = max(current_max, next_val)
return best_rangejava
import java.util.PriorityQueue;
import java.util.List;
class Solution {
public int[] smallestRange(List<List<Integer>> nums) {
// Min-heap: [value, list_index, element_index]
PriorityQueue<int[]> minHeap = new PriorityQueue<>(
(a, b) -> Integer.compare(a[0], b[0])
);
int currentMax = Integer.MIN_VALUE;
// Initialize with first element from each list
for (int i = 0; i < nums.size(); i++) {
int val = nums.get(i).get(0);
minHeap.offer(new int[]{val, i, 0});
currentMax = Math.max(currentMax, val);
}
int[] bestRange = {minHeap.peek()[0], currentMax};
while (true) {
int[] entry = minHeap.poll();
int minVal = entry[0];
int listIdx = entry[1];
int elemIdx = entry[2];
// Check if this range is better
if (currentMax - minVal < bestRange[1] - bestRange[0]) {
bestRange = new int[]{minVal, currentMax};
}
// Stop if this list is exhausted
if (elemIdx + 1 == nums.get(listIdx).size()) {
break;
}
// Push next element from this list
int nextVal = nums.get(listIdx).get(elemIdx + 1);
minHeap.offer(new int[]{nextVal, listIdx, elemIdx + 1});
currentMax = Math.max(currentMax, nextVal);
}
return bestRange;
}
}Complexity: Time O(n log k) · Space O(k)
- Time: Each of n total elements is pushed and popped from the heap exactly once. Each heap operation costs O(log k) where k is the number of lists
- Space: The heap always contains exactly k elements (one from each list)
Step-by-Step Walkthrough
nums = [[4,10,15,24,26], [0,9,12,20], [5,18,22,30]]
=== Initialization ===
Push first elements:
(4, 0, 0) from list 0
(0, 1, 0) from list 1
(5, 2, 0) from list 2
Heap: [(0, 1, 0), (4, 0, 0), (5, 2, 0)]
current_max = max(4, 0, 5) = 5
best_range = [0, 5] (size 5)
=== Iteration 1 ===
Pop (0, 1, 0): min = 0 from list 1
Range [0, 5] is not better than current best [0, 5]
Advance list 1: push (9, 1, 1)
current_max = max(5, 9) = 9
Heap: [(4, 0, 0), (5, 2, 0), (9, 1, 1)]
=== Iteration 2 ===
Pop (4, 0, 0): min = 4 from list 0
Range [4, 9] size = 5, best is [0, 5] size = 5
4 > 0, so [4, 9] not better
Advance list 0: push (10, 0, 1)
current_max = max(9, 10) = 10
Heap: [(5, 2, 0), (9, 1, 1), (10, 0, 1)]
=== Iteration 3 ===
Pop (5, 2, 0): min = 5 from list 2
Range [5, 10] size = 5, not better
Advance list 2: push (18, 2, 1)
current_max = max(10, 18) = 18
Heap: [(9, 1, 1), (10, 0, 1), (18, 2, 1)]
=== Iteration 4 ===
Pop (9, 1, 1): min = 9 from list 1
Range [9, 18] size = 9, not better
Advance list 1: push (12, 1, 2)
current_max = 18 (unchanged)
Heap: [(10, 0, 1), (12, 1, 2), (18, 2, 1)]
=== Iteration 5 ===
Pop (10, 0, 1): min = 10 from list 0
Range [10, 18] size = 8, not better
Advance list 0: push (15, 0, 2)
current_max = 18 (unchanged)
Heap: [(12, 1, 2), (15, 0, 2), (18, 2, 1)]
=== Iteration 6 ===
Pop (12, 1, 2): min = 12 from list 1
Range [12, 18] size = 6, not better
Advance list 1: push (20, 1, 3)
current_max = max(18, 20) = 20
Heap: [(15, 0, 2), (18, 2, 1), (20, 1, 3)]
=== Iteration 7 ===
Pop (15, 0, 2): min = 15 from list 0
Range [15, 20] size = 5, not better (same size, 15 > 0)
Advance list 0: push (24, 0, 3)
current_max = max(20, 24) = 24
Heap: [(18, 2, 1), (20, 1, 3), (24, 0, 3)]
=== Iteration 8 ===
Pop (18, 2, 1): min = 18 from list 2
Range [18, 24] size = 6, not better
Advance list 2: push (22, 2, 2)
current_max = 24 (unchanged)
Heap: [(20, 1, 3), (22, 2, 2), (24, 0, 3)]
=== Iteration 9 ===
Pop (20, 1, 3): min = 20 from list 1
Range [20, 24] size = 4 < 5, NEW BEST!
best_range = [20, 24]
Advance list 1: list 1 is exhausted!
STOP
Final answer: [20, 24]Complexity Analysis
| Metric | Value |
|---|---|
| Time | O(n log k) where n = total elements |
| Space | O(k) for the heap |
The algorithm processes each element at most once, and each heap operation is O(log k).
Common Mistakes
Not tracking maximum separately
python# Wrong: heap only gives minimum efficiently current_max = max(val for val, _, _ in heap) # O(k) each time! # Correct: track max incrementally current_max = max(current_max, next_val)Off-by-one when checking list exhaustion
python# Check BEFORE advancing if elem_idx + 1 == len(nums[list_idx]): break # Can't advance furtherWrong range comparison
python# Range [a, b] vs [c, d] # Smaller if b-a < d-c, OR same size and a < c if (new_max - new_min < best[1] - best[0] or (new_max - new_min == best[1] - best[0] and new_min < best[0])): best = [new_min, new_max]
Visual ASCII Diagram
Lists:
0: [4, 10, 15, 24, 26]
1: [0, 9, 12, 20]
2: [5, 18, 22, 30]
Timeline representation:
0 5 10 15 20 25 30
|----|----|----|----|----|----|
List 1: 0 9 12 20
List 0: 4 10 15 24 26
List 2: 5 18 22 30
Finding [20, 24]:
|=====|
20 24
List 1 contributes 20 ^
List 0 contributes 24 --+
List 2 contributes 22 (inside range)Alternative Approach: Merge + Sliding Window
python
def smallestRange_merge(nums: list[list[int]]) -> list[int]:
"""
Merge all lists with source tracking, then use sliding window.
Time: O(n log n) for sorting
Space: O(n) for merged list
"""
# Merge all elements with their list index
merged = []
for i, lst in enumerate(nums):
for val in lst:
merged.append((val, i))
merged.sort()
# Sliding window to find smallest range covering all lists
k = len(nums)
count = {}
covered = 0
best = [merged[0][0], merged[-1][0]]
left = 0
for right, (val, list_idx) in enumerate(merged):
# Add right element
if count.get(list_idx, 0) == 0:
covered += 1
count[list_idx] = count.get(list_idx, 0) + 1
# Shrink window while all lists covered
while covered == k:
# Update best
if merged[right][0] - merged[left][0] < best[1] - best[0]:
best = [merged[left][0], merged[right][0]]
# Remove left element
left_list = merged[left][1]
count[left_list] -= 1
if count[left_list] == 0:
covered -= 1
left += 1
return bestComplexity: Time O(n log n) · Space O(n)
- Time: Merging all elements takes O(n). Sorting takes O(n log n). Sliding window traversal is O(n)
- Space: O(n) for the merged array plus O(k) for the count dictionary
Follow-up Questions
Q1: What if we need to find the range containing at least m elements from each list?
Modify the heap approach to track counts:
python
def smallestRangeM(nums, m):
# Track how many elements from each list are in current window
# Use sorted merge + sliding window approach
passQ2: What if lists are given as iterators (streaming)?
The heap approach works directly with iterators - just call next() instead of indexing.
Related Problems
Merge K Sorted Lists (LeetCode 23)
Problem: Merge k sorted linked lists into one sorted linked list.
Key Insight: Use min-heap to always extract the smallest available node across all lists.
Approach: Push head of each list to heap. Pop smallest, append to result, push that node's next (if exists) to heap.
Complexity: Time O(N log k) where N is total nodes; Space O(k)
Kth Smallest Element in a Sorted Matrix (LeetCode 378)
Problem: Given an n x n matrix with sorted rows and columns, find the kth smallest element.
Key Insight: Use min-heap for k-way merge of rows, or binary search on value range.
Approach (Heap): Push first element of each row to heap. Pop k times, pushing next element from same row after each pop.
Complexity: Time O(k log n) for heap, O(n log(max-min)) for binary search; Space O(n)
Find K Pairs with Smallest Sums (LeetCode 373)
Problem: Given two sorted arrays, find k pairs (one element from each) with the smallest sums.
Key Insight: Use min-heap to explore pairs in order of increasing sum without generating all pairs.
Approach: Start with pairs using first element of nums1 with all of nums2. Pop smallest sum pair, push next pair from nums1.
Complexity: Time O(k log k); Space O(k)
Interview Tips
Start with the brute force
- "We could check all possible ranges, but that's O(n^k)"
- Show you understand the problem space
Introduce the key insight
- "At any time, we need exactly one element from each list"
- "The range is defined by min and max of these k elements"
Explain why we advance the minimum
- "To shrink the range, we must increase the minimum"
- "Decreasing the maximum would remove the only element from some list"
Handle the stopping condition
- "When any list is exhausted, we can't form valid ranges anymore"
- "Every subsequent range would miss that list"
