Sudoku Solver & Regex Parser
Complex backtracking applications - Two classic problems that demonstrate the power of recursive backtracking and dynamic programming optimization techniques.
Table of Contents
Sudoku Solver
Problem Statement
Solve a 9x9 Sudoku puzzle by filling empty cells (marked as '.').
LeetCode: Problem 37 - Sudoku Solver
Rules:
- Each row must contain digits 1-9 with no repetition
- Each column must contain digits 1-9 with no repetition
- Each 3x3 sub-box must contain digits 1-9 with no repetition
- The input puzzle has exactly one solution
Core Intuition
The backtracking approach treats the Sudoku board like a maze: at each empty cell (intersection), we try each possible digit (path). If we hit an invalid state (wall), we backtrack and try the next digit. This systematic exploration guarantees finding the solution without wasting time on impossible paths.

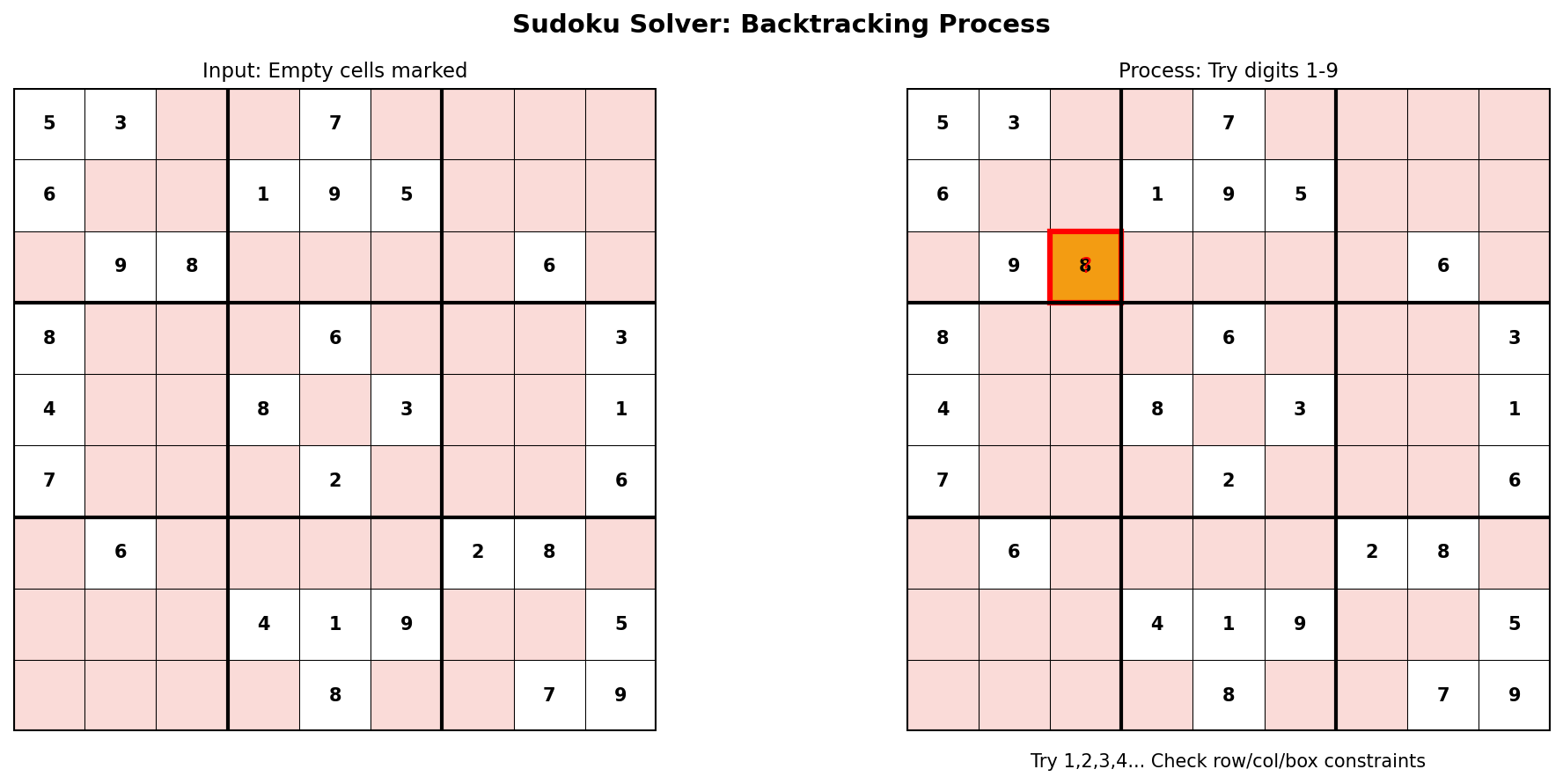

Visualization: Backtracking Process
INITIAL BOARD STATE:
+-------+-------+-------+
| 5 3 . | . 7 . | . . . |
| 6 . . | 1 9 5 | . . . |
| . 9 8 | . . . | . 6 . |
+-------+-------+-------+
| 8 . . | . 6 . | . . 3 |
| 4 . . | 8 . 3 | . . 1 |
| 7 . . | . 2 . | . . 6 |
+-------+-------+-------+
| . 6 . | . . . | 2 8 . |
| . . . | 4 1 9 | . . 5 |
| . . . | . 8 . | . 7 9 |
+-------+-------+-------+
STEP-BY-STEP BACKTRACKING:
Step 1: Find first empty cell (0,2)
Available numbers: {1,2,4} (eliminating 3,5,6,7,8,9 due to constraints)
Try 4... Valid!
+-------+-------+-------+
| 5 3 4 | . 7 . | . . . | <-- Placed 4
| 6 . . | 1 9 5 | . . . |
| . 9 8 | . . . | . 6 . |
+-------+-------+-------+
...
Step 2: Move to next empty cell (0,3)
Try 2... Valid!
Try 6... Valid! Continue...
...LATER IN THE PROCESS...
BACKTRACKING TRIGGERED:
+-------+-------+-------+
| 5 3 4 | 6 7 8 | 9 1 2 |
| 6 7 2 | 1 9 5 | 3 4 8 |
| 1 9 8 | 3 4 2 | 5 6 7 |
+-------+-------+-------+
| 8 5 9 | 7 6 1 | 4 2 3 |
| 4 2 6 | 8 5 3 | 7 X . | <-- Can't place valid number at X!
...
Dead end detected!
ACTION: Backtrack to previous cell
Remove last placed number
Try next candidate
Undo: board[4][7] = '.'
Try next number at (4,6)...
FINAL SOLVED STATE:
+-------+-------+-------+
| 5 3 4 | 6 7 8 | 9 1 2 |
| 6 7 2 | 1 9 5 | 3 4 8 |
| 1 9 8 | 3 4 2 | 5 6 7 |
+-------+-------+-------+
| 8 5 9 | 7 6 1 | 4 2 3 |
| 4 2 6 | 8 5 3 | 7 9 1 |
| 7 1 3 | 9 2 4 | 8 5 6 |
+-------+-------+-------+
| 9 6 1 | 5 3 7 | 2 8 4 |
| 2 8 7 | 4 1 9 | 6 3 5 |
| 3 4 5 | 2 8 6 | 1 7 9 |
+-------+-------+-------+Visualization: Constraint Checking
Checking if '5' can be placed at position (4,4):
ROW CHECK (row 4): COLUMN CHECK (col 4): BOX CHECK (box 4):
+---+---+---+---+---+ +---+ +-------+
| 4 | 2 | 6 | 8 |[?]| ... | 7 | | . 6 . |
+---+---+---+---+---+ | 9 | | 8 . 3 |
|[?]| | . 2 . |
5 in row? NO | 6 | +-------+
| 2 | 5 in 3x3 box? NO
| . |
| 1 | ALL CLEAR!
| 8 | Place 5 at (4,4)
+---+
5 in col? NO
Box index formula: box_idx = (row // 3) * 3 + (col // 3)
For (4,4): box_idx = (4//3)*3 + (4//3) = 1*3 + 1 = 4 (center box)Solution - Basic Backtracking
python
def solveSudoku(board: list[list[str]]) -> None:
"""
Solve Sudoku puzzle in-place using backtracking.
Time: O(9^m) where m is number of empty cells (worst case)
Space: O(m) for recursion stack
"""
def is_valid(row: int, col: int, num: str) -> bool:
# Check row constraint
if num in board[row]:
return False
# Check column constraint
if num in [board[r][col] for r in range(9)]:
return False
# Check 3x3 box constraint
box_row, box_col = 3 * (row // 3), 3 * (col // 3)
for r in range(box_row, box_row + 3):
for c in range(box_col, box_col + 3):
if board[r][c] == num:
return False
return True
def solve() -> bool:
# Find next empty cell
for row in range(9):
for col in range(9):
if board[row][col] == '.':
# Try each digit 1-9
for num in '123456789':
if is_valid(row, col, num):
board[row][col] = num # Place number
if solve(): # Recurse
return True
board[row][col] = '.' # Backtrack
return False # No valid number found - trigger backtrack
return True # All cells filled successfully
solve()
# Example usage
board = [
["5","3",".",".","7",".",".",".","."],
["6",".",".","1","9","5",".",".","."],
[".","9","8",".",".",".",".","6","."],
["8",".",".",".","6",".",".",".","3"],
["4",".",".","8",".","3",".",".","1"],
["7",".",".",".","2",".",".",".","6"],
[".","6",".",".",".",".","2","8","."],
[".",".",".","4","1","9",".",".","5"],
[".",".",".",".","8",".",".","7","9"]
]
solveSudoku(board)
# board is now solved in-placejava
class Solution {
// rows[r][d], cols[c][d], boxes[b][d] = true means digit d+1 is used
private boolean[][] rows = new boolean[9][9];
private boolean[][] cols = new boolean[9][9];
private boolean[][] boxes = new boolean[9][9];
private char[][] board;
public void solveSudoku(char[][] board) {
this.board = board;
// Pre-fill constraint arrays from given digits
for (int r = 0; r < 9; r++) {
for (int c = 0; c < 9; c++) {
if (board[r][c] != '.') {
int d = board[r][c] - '1';
int b = (r / 3) * 3 + c / 3;
rows[r][d] = cols[c][d] = boxes[b][d] = true;
}
}
}
solve(0, 0);
}
private boolean solve(int r, int c) {
// Advance past filled cells
while (r < 9 && board[r][c] != '.') {
c++;
if (c == 9) { c = 0; r++; }
}
if (r == 9) return true; // All cells filled
int b = (r / 3) * 3 + c / 3;
for (int d = 0; d < 9; d++) {
if (!rows[r][d] && !cols[c][d] && !boxes[b][d]) {
board[r][c] = (char) ('1' + d);
rows[r][d] = cols[c][d] = boxes[b][d] = true;
int nc = c + 1, nr = r;
if (nc == 9) { nc = 0; nr++; }
if (solve(nr, nc)) return true;
board[r][c] = '.';
rows[r][d] = cols[c][d] = boxes[b][d] = false;
}
}
return false;
}
}Complexity: Time O(9^m) · Space O(m)
- Time: O(9^m) worst case where m is the number of empty cells - trying up to 9 digits per empty cell
- Space: O(m) for recursion stack depth equal to the number of empty cells
Optimized Solution with Sets (O(1) Validation)
python
def solveSudoku_optimized(board: list[list[str]]) -> None:
"""
Optimized Sudoku solver using sets for O(1) constraint checking.
Time: O(9^m) worst case, but faster in practice
Space: O(81) for sets + O(m) for recursion
"""
# Pre-compute constraints using sets
rows = [set() for _ in range(9)]
cols = [set() for _ in range(9)]
boxes = [set() for _ in range(9)]
empty = [] # List of empty cell coordinates
# Initialize constraint sets and find empty cells
for r in range(9):
for c in range(9):
if board[r][c] != '.':
num = board[r][c]
rows[r].add(num)
cols[c].add(num)
boxes[(r // 3) * 3 + c // 3].add(num)
else:
empty.append((r, c))
def backtrack(idx: int) -> bool:
# Base case: all empty cells filled
if idx == len(empty):
return True
r, c = empty[idx]
box_idx = (r // 3) * 3 + c // 3
for num in '123456789':
# O(1) constraint checking with sets
if num not in rows[r] and num not in cols[c] and num not in boxes[box_idx]:
# Place number
board[r][c] = num
rows[r].add(num)
cols[c].add(num)
boxes[box_idx].add(num)
if backtrack(idx + 1):
return True
# Backtrack - remove number
board[r][c] = '.'
rows[r].remove(num)
cols[c].remove(num)
boxes[box_idx].remove(num)
return False
backtrack(0)Complexity: Time O(9^m) · Space O(81 + m)
- Time: O(9^m) worst case but faster in practice due to O(1) constraint checking using sets
- Space: O(81) for the three sets (rows, cols, boxes) plus O(m) for recursion stack
Advanced: Bitmask Optimization
python
def solveSudoku_bitmask(board: list[list[str]]) -> None:
"""
Ultra-optimized using bitmasks for constraint tracking.
Each bit represents availability of digits 1-9.
Time: O(9^m), Space: O(1) for masks + O(m) for recursion
"""
rows = [0] * 9 # Bitmask for each row
cols = [0] * 9 # Bitmask for each column
boxes = [0] * 9 # Bitmask for each 3x3 box
empty = []
def get_box(r: int, c: int) -> int:
return (r // 3) * 3 + c // 3
# Initialize bitmasks
for r in range(9):
for c in range(9):
if board[r][c] != '.':
bit = 1 << (int(board[r][c]) - 1)
rows[r] |= bit
cols[c] |= bit
boxes[get_box(r, c)] |= bit
else:
empty.append((r, c))
def backtrack(idx: int) -> bool:
if idx == len(empty):
return True
r, c = empty[idx]
box = get_box(r, c)
# Available numbers = NOT (row | col | box)
available = ~(rows[r] | cols[c] | boxes[box]) & 0x1FF
while available:
# Get lowest set bit (next available number)
bit = available & (-available)
available &= available - 1
num = str(bit.bit_length())
board[r][c] = num
rows[r] |= bit
cols[c] |= bit
boxes[box] |= bit
if backtrack(idx + 1):
return True
board[r][c] = '.'
rows[r] &= ~bit
cols[c] &= ~bit
boxes[box] &= ~bit
return False
backtrack(0)Complexity: Time O(9^m) · Space O(1 + m)
- Time: O(9^m) worst case with fastest constant factor due to bitwise operations for constraint checking
- Space: O(1) for fixed-size bitmask arrays (27 integers) plus O(m) for recursion stack
Visual Guides
Basic Regex Parser
Problem Statement
Implement regular expression matching with support for . and *:
.matches any single character*matches zero or more of the preceding element
The matching should cover the entire input string (not partial).
LeetCode: Problem 10 - Regular Expression Matching
Pattern Matching Visualization
EXAMPLE 1: Pattern "a*b" matches String "aab"
Decision Tree Visualization:
isMatch("aab", "a*b")
/ \
[skip a*] [use a* to match 'a']
| |
isMatch("aab", "b") isMatch("ab", "a*b")
| / \
'a' != 'b' [skip a*] [use a* to match 'a']
| | |
FALSE isMatch("ab", "b") isMatch("b", "a*b")
| / \
'a' != 'b' [skip a*] [use a* - can't match]
| | |
FALSE isMatch("b", "b") 'a' != 'b'
| |
MATCH! TRUE FALSE
EXAMPLE 2: Pattern ".*" matches ANY string
".*" with "abc":
'.' matches any char, '*' means zero or more
So ".*" = match any character, any number of times
isMatch("abc", ".*")
-> Use .* to match 'a': isMatch("bc", ".*")
-> Use .* to match 'b': isMatch("c", ".*")
-> Use .* to match 'c': isMatch("", ".*")
-> Skip .*: isMatch("", "") = TRUE!
EXAMPLE 3: Pattern "a.b" with String "acb"
Step-by-step matching:
Pattern: a . b
String: a c b
| | |
Match: a c b
^ ^ ^
| | |
'a'='a' '.'=any 'b'='b'
OK! OK! OK!
Result: TRUE
EXAMPLE 4: Pattern "ab*c" with String "ac" (zero occurrences)
Pattern: a b* c
String: a c
'a' matches 'a' -> continue
'b*' can match ZERO 'b's -> skip to 'c'
'c' matches 'c' -> TRUE!State Machine Visualization
Pattern: "a*b" as a state machine:
+-----+ 'a' +-----+ 'b' +-----+
---->| 0 |--------->| 0 |--------->| 1 |
+-----+ +-----+ +-----+
| |
| 'b' | (accepting)
+-------------------->------------+
State 0: Haven't matched 'b' yet
- On 'a': stay in state 0 (a* consumes it)
- On 'b': move to state 1
State 1: Matched 'b' (accepting state)
Pattern: "a.b*c" as transitions:
+---+ 'a' +---+ any +---+ 'b' +---+ 'c' +---+
--->| 0 |------>| 1 |------>| 2 |<----->| 2 |------>| 3 |
+---+ +---+ +---+ +---+ +---+
\_____/ (accepting)
stay on 'b'
(b* loop)DP Table Visualization
String s = "aab", Pattern p = "c*a*b"
Build DP table where dp[i][j] = s[0:i] matches p[0:j]
"" c * a * b
j: 0 1 2 3 4 5
+-----+----+----+----+----+----+----+
"" i: 0 | T | F | T | F | T | F |
+-----+----+----+----+----+----+----+
a i: 1 | F | F | F | T | T | F |
+-----+----+----+----+----+----+----+
a i: 2 | F | F | F | F | T | F |
+-----+----+----+----+----+----+----+
b i: 3 | F | F | F | F | F | T |
+-----+----+----+----+----+----+----+
Key observations:
- dp[0][0] = True (empty matches empty)
- dp[0][2] = True (c* can match empty by taking 0 c's)
- dp[0][4] = True (c*a* can match empty)
- dp[3][5] = True = ANSWER (full match!)
Transitions:
- If p[j-1] == '*':
dp[i][j] = dp[i][j-2] OR (s[i-1] matches p[j-2] AND dp[i-1][j])
- Else if p[j-1] == '.' or p[j-1] == s[i-1]:
dp[i][j] = dp[i-1][j-1]Solution - Recursive with Memoization
python
def isMatch(s: str, p: str) -> bool:
"""
Regular expression matching with '.' and '*'.
Time: O(m * n) with memoization
Space: O(m * n) for memo + O(m + n) for recursion stack
Args:
s: Input string to match
p: Pattern with '.' (any char) and '*' (zero or more of preceding)
Returns:
True if s matches p completely
"""
memo = {}
def dp(i: int, j: int) -> bool:
"""Check if s[i:] matches p[j:]"""
# Return cached result if available
if (i, j) in memo:
return memo[(i, j)]
# Base case: pattern exhausted
if j == len(p):
result = (i == len(s)) # True only if string also exhausted
memo[(i, j)] = result
return result
# Check if current characters match
first_match = (i < len(s)) and (p[j] in {s[i], '.'})
# Handle '*' - two choices
if j + 1 < len(p) and p[j + 1] == '*':
# Choice 1: Skip the 'x*' pattern (match zero occurrences)
# Choice 2: Use 'x*' to match current char (if it matches)
result = (
dp(i, j + 2) or # Skip pattern
(first_match and dp(i + 1, j)) # Match one char, stay on pattern
)
else:
# No '*', must match current char and move forward
result = first_match and dp(i + 1, j + 1)
memo[(i, j)] = result
return result
return dp(0, 0)
# Test cases
assert isMatch("aa", "a") == False # Single 'a' doesn't match "aa"
assert isMatch("aa", "a*") == True # 'a*' matches any number of 'a's
assert isMatch("ab", ".*") == True # '.*' matches any string
assert isMatch("aab", "c*a*b") == True # c* matches empty, a* matches "aa"
assert isMatch("mississippi", "mis*is*p*.") == Falsejava
import java.util.*;
class Solution {
private String s, p;
private Boolean[][] memo;
public boolean isMatch(String s, String p) {
this.s = s;
this.p = p;
this.memo = new Boolean[s.length() + 1][p.length() + 1];
return dp(0, 0);
}
// Check if s[i:] matches p[j:]
private boolean dp(int i, int j) {
if (memo[i][j] != null) return memo[i][j];
// Base case: pattern exhausted
if (j == p.length()) {
return memo[i][j] = (i == s.length());
}
boolean firstMatch = (i < s.length())
&& (p.charAt(j) == s.charAt(i) || p.charAt(j) == '.');
boolean result;
if (j + 1 < p.length() && p.charAt(j + 1) == '*') {
// Skip 'x*' OR consume one matching char and stay on 'x*'
result = dp(i, j + 2) || (firstMatch && dp(i + 1, j));
} else {
result = firstMatch && dp(i + 1, j + 1);
}
return memo[i][j] = result;
}
}Complexity: Time O(m * n) · Space O(m * n)
- Time: O(m * n) with memoization where m is string length and n is pattern length - each state computed once
- Space: O(m * n) for memoization cache plus O(m + n) for recursion stack
Solution (Python) - Bottom-Up Dynamic Programming
python
def isMatch_dp(s: str, p: str) -> bool:
"""
Regular expression matching using bottom-up DP.
Time: O(m * n)
Space: O(m * n) for DP table
"""
m, n = len(s), len(p)
# dp[i][j] = True if s[:i] matches p[:j]
dp = [[False] * (n + 1) for _ in range(m + 1)]
# Base case: empty string matches empty pattern
dp[0][0] = True
# Handle patterns like "a*", "a*b*", ".*" matching empty string
# Pattern "x*" can match empty string by taking zero x's
for j in range(2, n + 1):
if p[j - 1] == '*':
dp[0][j] = dp[0][j - 2] # Skip the 'x*' pattern
# Fill the DP table
for i in range(1, m + 1):
for j in range(1, n + 1):
if p[j - 1] == '*':
# '*' case: either skip pattern or match if chars align
# Option 1: Skip 'x*' (zero occurrences)
dp[i][j] = dp[i][j - 2]
# Option 2: Match current char with 'x*'
if p[j - 2] in {s[i - 1], '.'}:
dp[i][j] = dp[i][j] or dp[i - 1][j]
elif p[j - 1] in {s[i - 1], '.'}:
# Current chars match (or pattern has '.')
dp[i][j] = dp[i - 1][j - 1]
return dp[m][n]
# Visualization helper
def print_dp_table(s: str, p: str):
"""Print the DP table for debugging."""
m, n = len(s), len(p)
dp = [[False] * (n + 1) for _ in range(m + 1)]
dp[0][0] = True
for j in range(2, n + 1):
if p[j - 1] == '*':
dp[0][j] = dp[0][j - 2]
for i in range(1, m + 1):
for j in range(1, n + 1):
if p[j - 1] == '*':
dp[i][j] = dp[i][j - 2]
if p[j - 2] in {s[i - 1], '.'}:
dp[i][j] = dp[i][j] or dp[i - 1][j]
elif p[j - 1] in {s[i - 1], '.'}:
dp[i][j] = dp[i - 1][j - 1]
# Print header
print(" ", end="")
print(" \"\"", end="")
for c in p:
print(f" {c}", end="")
print()
# Print rows
for i in range(m + 1):
char = f"\"{s[i-1]}\"" if i > 0 else "\"\""
print(f"{char:4}", end="")
for j in range(n + 1):
val = "T" if dp[i][j] else "F"
print(f" {val}", end="")
print()
print(f"\nResult: {dp[m][n]}")
# Example usage
print_dp_table("aab", "c*a*b")Complexity: Time O(m * n) · Space O(m * n)
- Time: O(m * n) where m is string length and n is pattern length - filling the DP table
- Space: O(m * n) for the DP table storing all subproblem results
Space-Optimized DP (O(n) Space)
python
def isMatch_optimized(s: str, p: str) -> bool:
"""
Space-optimized regex matching.
Time: O(m * n)
Space: O(n) - only keep current and previous row
"""
m, n = len(s), len(p)
# Only need previous row
prev = [False] * (n + 1)
prev[0] = True
# Initialize first row (empty string)
for j in range(2, n + 1):
if p[j - 1] == '*':
prev[j] = prev[j - 2]
for i in range(1, m + 1):
curr = [False] * (n + 1)
for j in range(1, n + 1):
if p[j - 1] == '*':
curr[j] = curr[j - 2] # Skip pattern
if p[j - 2] in {s[i - 1], '.'}:
curr[j] = curr[j] or prev[j] # Match and continue
elif p[j - 1] in {s[i - 1], '.'}:
curr[j] = prev[j - 1]
prev = curr
return prev[n]Complexity: Time O(m * n) · Space O(n)
- Time: O(m * n) where m is string length and n is pattern length - same computation as full DP
- Space: O(n) for storing only the previous and current row of the DP table
Related Problem: Wildcard Matching (LeetCode 44)
python
def isMatch_wildcard(s: str, p: str) -> bool:
"""
Wildcard matching where:
- '?' matches any single character
- '*' matches any sequence (including empty)
Note: Different from regex - here '*' is independent,
not modifying the preceding character.
Time: O(m * n)
Space: O(n)
"""
m, n = len(s), len(p)
prev = [False] * (n + 1)
prev[0] = True
# Handle leading *'s
for j in range(1, n + 1):
if p[j - 1] == '*':
prev[j] = prev[j - 1]
else:
break
for i in range(1, m + 1):
curr = [False] * (n + 1)
for j in range(1, n + 1):
if p[j - 1] == '*':
# '*' matches empty OR matches s[i-1] and continues
curr[j] = curr[j - 1] or prev[j]
elif p[j - 1] == '?' or p[j - 1] == s[i - 1]:
curr[j] = prev[j - 1]
prev = curr
return prev[n]Complexity: Time O(m * n) · Space O(n)
- Time: O(m * n) where m is string length and n is pattern length
- Space: O(n) for storing only the previous and current row - wildcard '*' is independent (not modifying preceding char)
Interview Applications
Common Interview Patterns
These problems demonstrate critical skills sought by Google:
Constraint Propagation (Sudoku)
- Used in: Google's constraint satisfaction systems
- Example: Resource allocation, scheduling problems
Pattern Matching (Regex)
- Used in: Search query processing, log analysis
- Example: Google Search pattern matching
Backtracking with Pruning
- Used in: Route optimization, game AI
- Example: Google Maps route finding
Interview Tips
SUDOKU SOLVER - Key Points:
+------------------------------------------+
| 1. Start with brute-force explanation |
| 2. Discuss constraint checking (O(n) vs O(1)) |
| 3. Mention bitmask optimization |
| 4. Discuss pruning strategies |
| 5. Handle edge cases (invalid input) |
+------------------------------------------+
REGEX PARSER - Key Points:
+------------------------------------------+
| 1. Clarify the pattern symbols |
| 2. Draw the recursion tree |
| 3. Identify overlapping subproblems |
| 4. Discuss memo vs bottom-up trade-offs |
| 5. Handle edge cases ("", ".*", "a**") |
+------------------------------------------+Follow-up Questions to Expect
Sudoku:
- "How would you generate a valid Sudoku puzzle?"
- "How would you count all possible solutions?"
- "How would you optimize for 16x16 or 25x25 boards?"
Regex:
- "How would you add support for
+(one or more)?" - "How would you handle character classes like
[a-z]?" - "How would you implement backreferences?"
Complexity Comparison
| Problem | Approach | Time | Space |
|---|---|---|---|
| Sudoku | Basic Backtracking | O(9^m) | O(m) |
| Sudoku | Set Optimization | O(9^m) | O(81 + m) |
| Sudoku | Bitmask | O(9^m) | O(1 + m) |
| Regex | Recursive (no memo) | O(2^(m+n)) | O(m+n) |
| Regex | Memoization | O(m*n) | O(m*n) |
| Regex | Bottom-up DP | O(m*n) | O(m*n) |
| Regex | Space-optimized DP | O(m*n) | O(n) |
Where:
- m = number of empty cells (Sudoku) or string length (Regex)
- n = pattern length (Regex)
Practice Problems
- Sudoku Solver - LeetCode 37
- Valid Sudoku - LeetCode 36
- Regular Expression Matching - LeetCode 10
- Wildcard Matching - LeetCode 44
- N-Queens - LeetCode 51 (Similar backtracking pattern)
